K-Series G2 T5 Tube

Ecopoint's retrofit LED tubes provide an economical way to quickly upgrade existing fittings to gain immediate savings on energy costs and maintenance.
K-Series G2 T5 Tube

K-Series G2 T5 Tube

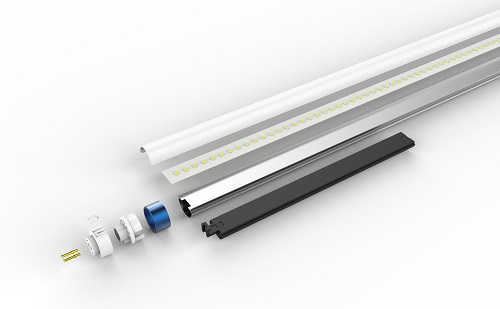

The K-Series offers a long-life, energy efficient alternative to fluorescent T5 lamps. While the lamp body is marginally larger diameter (22mm rather than 16mm), the standard T5 cap/base (G5) means that upgrading to LED can be as simple as bypassing the existing ballast and fitting the new lamp. These lamps feature an extruded aluminium body for rigidity and thermal performance, while the lockable rotating end-caps and choice of frosted or clear diffusers provides optical flexibility.

APPLICATIONS

Retrofit

SPECIFICATIONS

Power Factor:
>0.95
Electrical Input:
220-277V AC / 50-60 Hz

FEATURES

Warranty:
5 years
Construction:
Aluminium (extruded), Polycarbonate (PC)
Metal Finish:
Raw
Standard Mounting:
Retrofit
Life Prediction (hrs):
L70 > 113,000 hrs (B50)
Ingress Protection:
IP20
PRODUCT CODE DIMENSION (mm) POWER Luminous Flux Optic/Beam Colour Temperature Colour Rending Index
EKF4K600G2-SO 22 (dia) x 549 mm 11 W 1,140 lm 120 deg 4000K ≥ 80
EKF4K900G2-SO 22 (dia) x 849 mm 17 W 2,100 lm 120 deg 4000K ≥ 80
EKF4K1200G2-SO 22 (dia) x 1149 mm 20 W 2,220 lm 120 deg 4000K ≥ 80
EKF4K1500G2-HO 22 (dia) x 1449 mm 24 W 4,100 lm 120 deg 4000K ≥ 80
EKF4K1500G2-SO 22 (dia) x 1449 mm 24 W 2,600 lm 120 deg 4000K ≥ 80
EKF4K1200G2-HO 22 (dia) x 1149 mm 20 W 3,300 lm 120 deg 4000K ≥ 80
