Altum High Bay G4

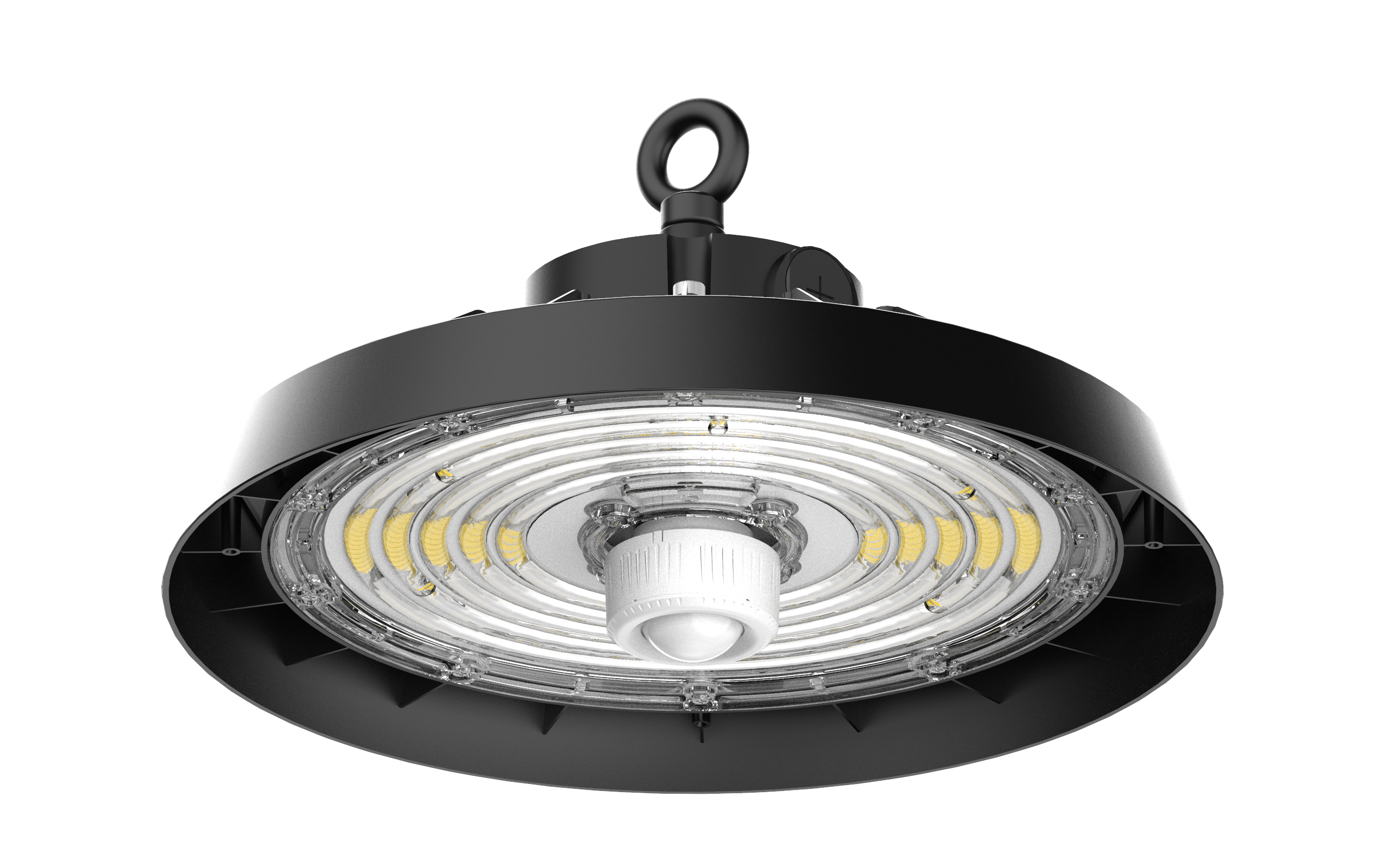

The first generation Ecopoint single-point high-bay was launched in 2016, and reliable long-term operation from those early installations is testament to the effectiveness of careful specification of electrical, optical and thermal configurations. That care continues to be applied in this fourth-generation product, although technology changes in the intervening period has unlocked higher levels of performance, dependability and range flexibility. This new G4 product now leverages a Zhaga Book 18 standardised socket to open up options for interoperability through compatibility with plug-in sensor/
control modules, including BLE mesh communications.
APPLICATIONS
Industrial
Commercial
Warehousing
Schools
SPECIFICATIONS
Power Factor:
Electrical Input:
100-277 AV / 47-63 Hz
FEATURES
Warranty:
5 years
Construction:
Aluminium (cast), Polycarbonate lens/cover
Standard Mounting:
Surface-mounted
Standard Mounting:
Surface-mount bracket optional
Life Prediction (hrs):
L90 @ 46,000 hrs /
L80 > 96,000 hrs
L80 > 96,000 hrs
Ingress Protection:
IP65
Impact Protection:
IK08
| PRODUCT CODE | DIMENSION (mm) | POWER | Luminous Flux | Optic/Beam | Colour Temperature | Colour Rending Index |
|---|---|---|---|---|---|---|
| EHBR330B100W8040-G4 | Ø250 x 173 mm | Selectable 100W/150W/200W | upto 17,000 lm | 120° | 4000K + 5700K / Others available on request | CRI 80 |
| EHBR330B150W8040-G4 | Ø250 x 173 mm | Selectable 100W/150W/200W | upto 24,000 lm | 120° | 4000K + 5700K / Other available on request | CRI 80 |
| EHBR330B200W8040-G4 | Ø250 x 173 mm | Selectable 100W/150W/200W | upto 30,000 lm | 120° | 4000K + 5700K / Others available on request | CRI 80 |
