Surface Mount Panel G4

Ecopoint's surface-mount and suspended LED luminaires are ideal solutions in retail, supermarkets, offices and commercial buildings.
Surface Mount Panel G4

Surface Mount Panel G4

The Surface Mount Panel is an addition to the popular Edge-lit Panel family which avoids the need for additional accessories for mounting on plaster and other nonconcrete surfaces (a cavity required for the remote driver). Available in 600x600 and 300x1200 sizes with a range of light outputs and glare ratings (UGR), these panels offer the look, efficacy, lifespan and colour consistency of the new generation Edge-lit panel, with the versatility of a screw-affixed luminaire.

APPLICATIONS

Office
Commercial
Retail
Residential

SPECIFICATIONS

Power Factor:
>0.93
Electrical Input:
220-240V AC / 50-60 Hz

FEATURES

Warranty:
5 years
Construction:
Aluminium (extruded), Arcylic (PMMA)
Metal Finish:
Painted
Standard Mounting:
Surface-mounted
Life Prediction (hrs):
L80 > 100,000 hrs (B10)
Ingress Protection:
IP20
Impact Protection:
IK02
PRODUCT CODE DIMENSION (mm) POWER Luminous Flux Optic/Beam Colour Temperature Colour Rending Index
ESP6X6W840G4 615 x 615 x 12 mm 22-39 W 2,900-5100 lm UGR<19 4000K ≥ 80
ESP12X3WS40G4 1215 x 315 x 12 mm 22-39 W 2,200-3900 lm UGR<19 4000K ≥ 95
ESP6X6WS40G4 615 x 615 x 12 mm 22-39 W 2,200-3,900 lm UGR<19 4000K ≥ 95
ESP12X3W840G4 1215 x 315 x 12 mm 22-39 W 2,700-4,750 lm UGR<19 4000K ≥ 80
ESP12X6W840G4 1215 x 615 x 12 mm 32-40 W 4,200-5,200 lm 4000K ≥ 80
ESP12X6WS40G4 1215 x 615 x 12 mm 32-40 W 3,200-4,000 lm 4000K ≥ 95

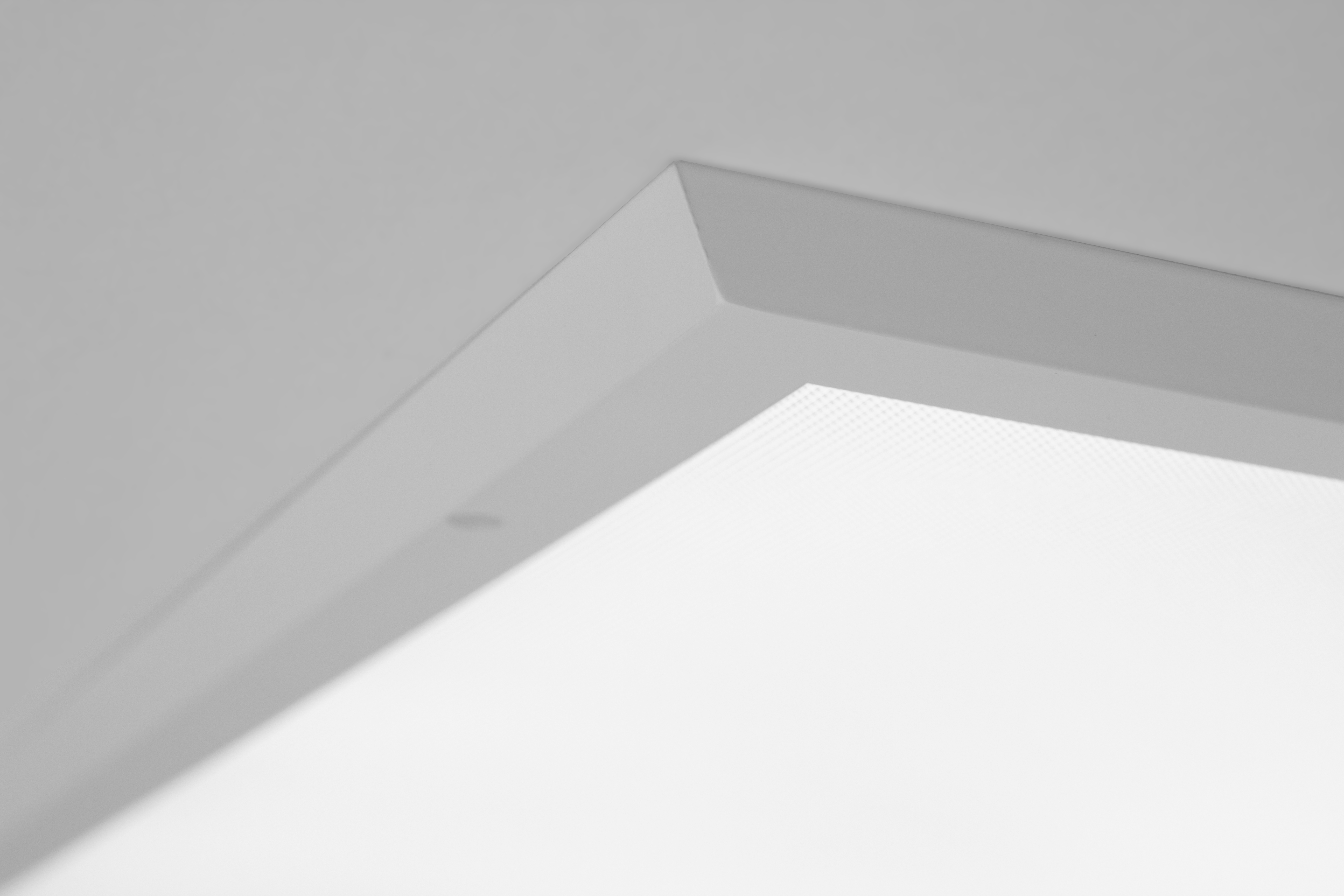

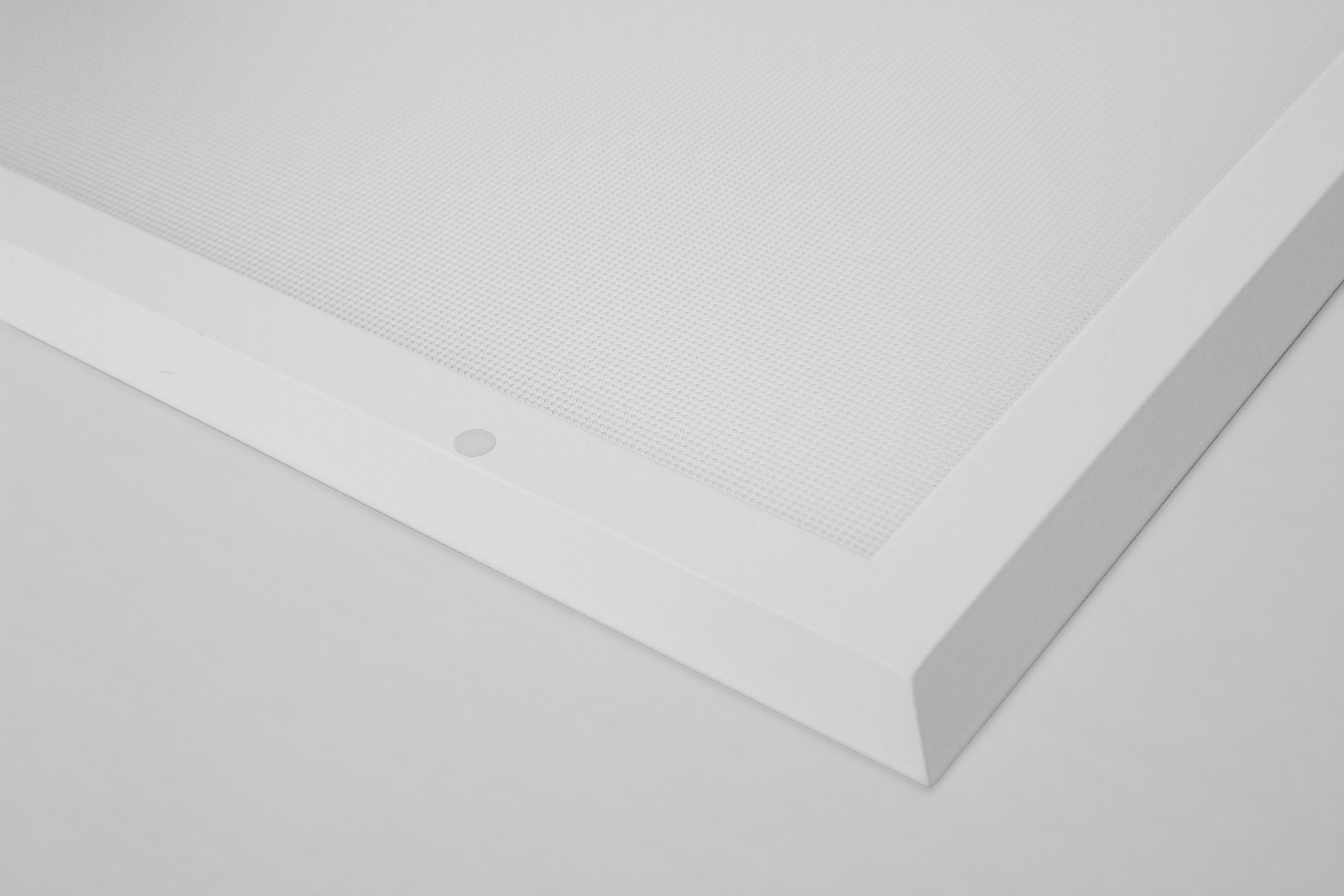

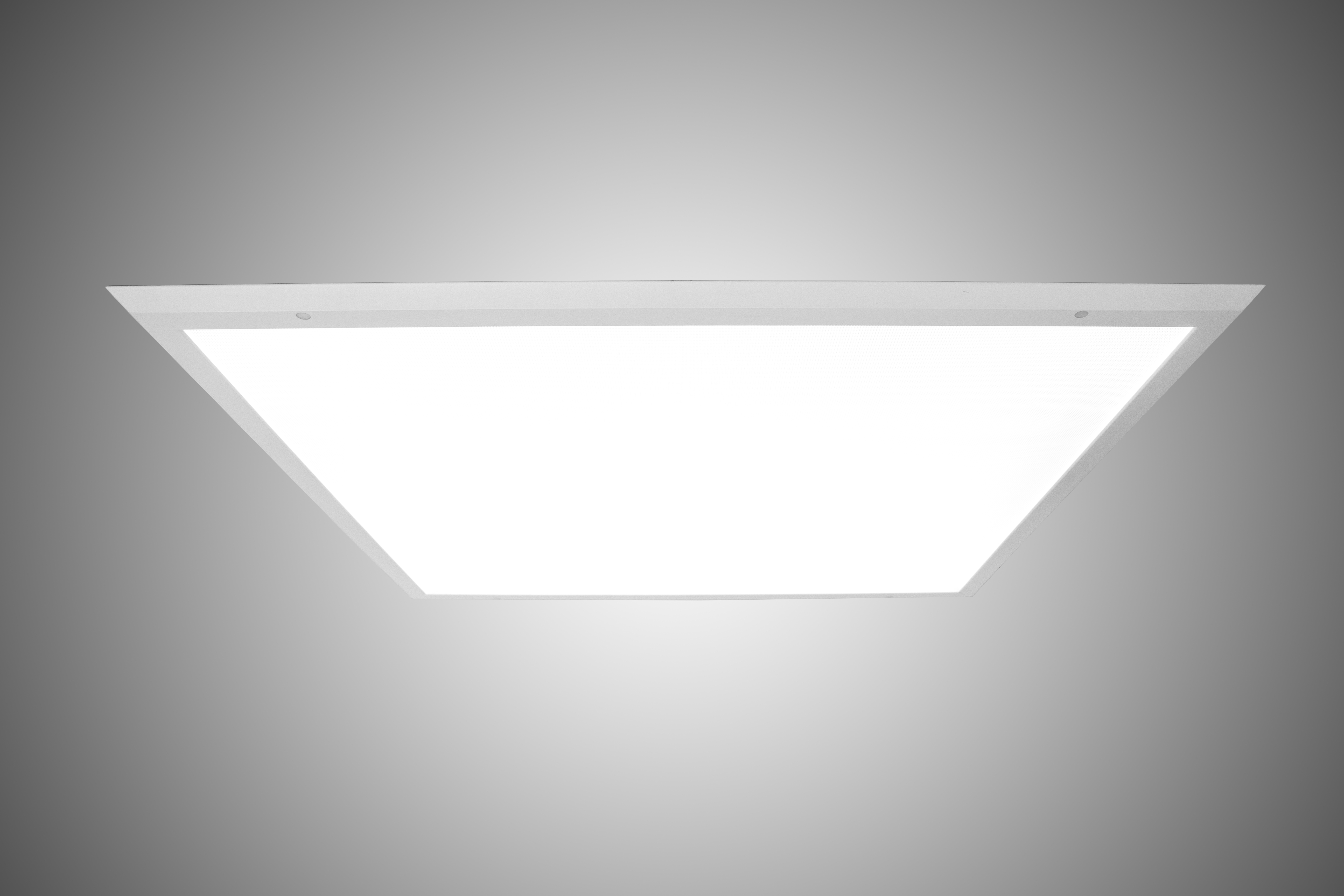

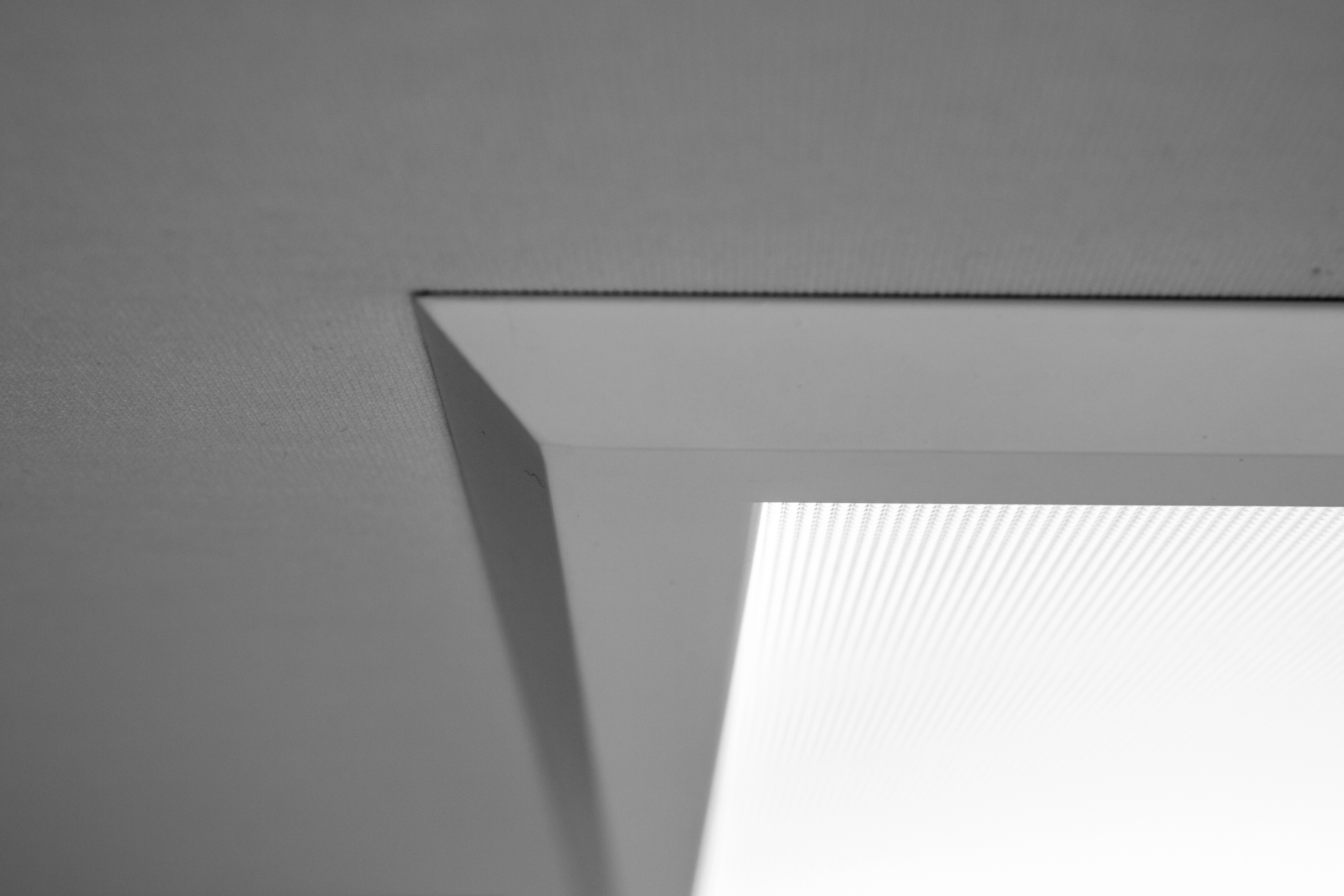

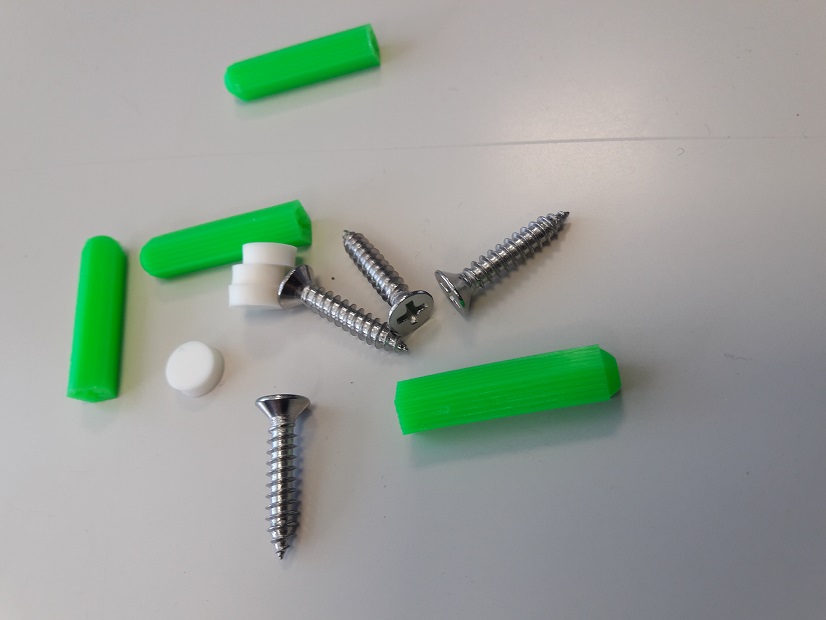

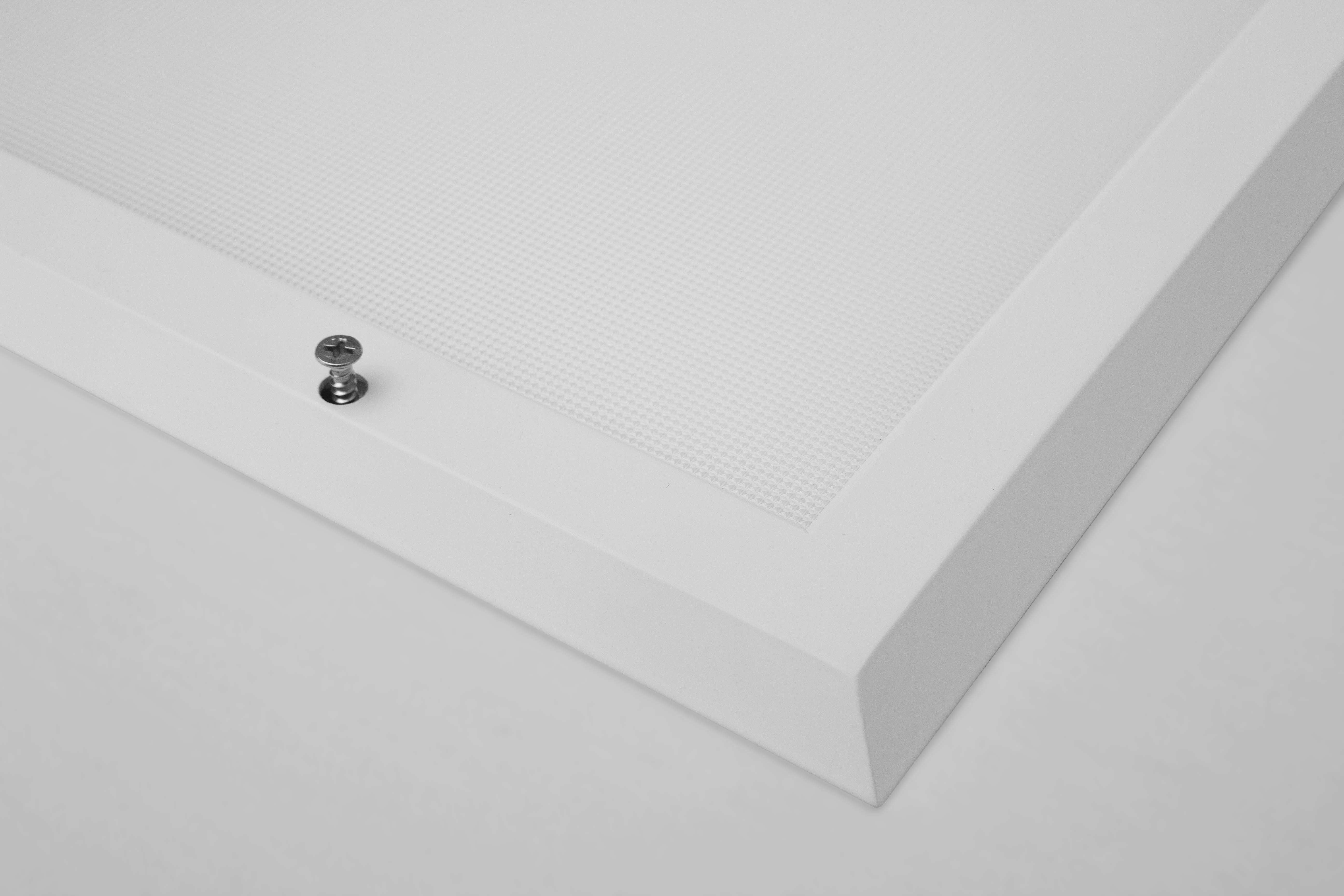

Additional Images
