Kylindros 360

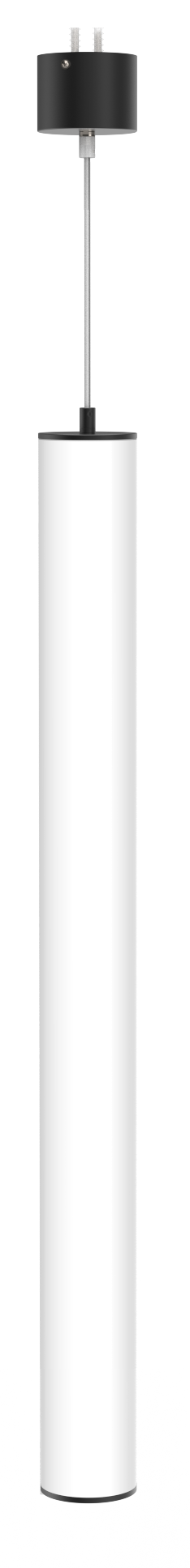

The archetypal glowing cylindrical luminaire, Kylindros 360 has been designed to complement contemporary architecture and provide low-glare, 360 degree illumination. With a full range of lengths and diameters and the ability to vary mounting heights, this luminaire can be installed to create a cascade effect and provide visual interest while evenly illuminating larger spaces.
APPLICATIONS
Office
Residential
Hospitality
Public buildings
Receptions
SPECIFICATIONS
Power Factor:
Electrical Input:
AC 220-240V / 50-60 Hz
FEATURES
Warranty:
5 years
Construction:
Aluminium (extruded), Polycarbonate (PC)
Metal Finish:
Powdercoated
Standard Mounting:
Pendant
Life Prediction (hrs):
L80 > 100,000 hrs
Ingress Protection:
IP40
Impact Protection:
IK08
| PRODUCT CODE | DIMENSION (mm) | POWER | Luminous Flux | Optic/Beam | Colour Temperature | Colour Rending Index |
|---|---|---|---|---|---|---|
| EKY506S20W8040360 | 600 mm, ø50mm / ø80mm | 20 W | 2600 lm | Opalescent diffuser 360ᵒ | 4000K | ≥ 80 |
| EKY509S30W8040360 | 900 mm, ø50mm / ø80mm | 30 W | 3900 lm | Opalescent diffuser 360ᵒ | 4000K | ≥ 80 |
| EKY512S30W8040360 | 1200 mm, ø50mm / ø80mm | 30 W | 3900 lm | Opalescent diffuser 360ᵒ | 4000K | ≥ 80 |
| EKY815S40W8040360 | 1500 mm, ø50mm / ø80mm | 40 W | 5200 lm | Opalescent diffuser 360ᵒ | 4000K | ≥ 80 |
