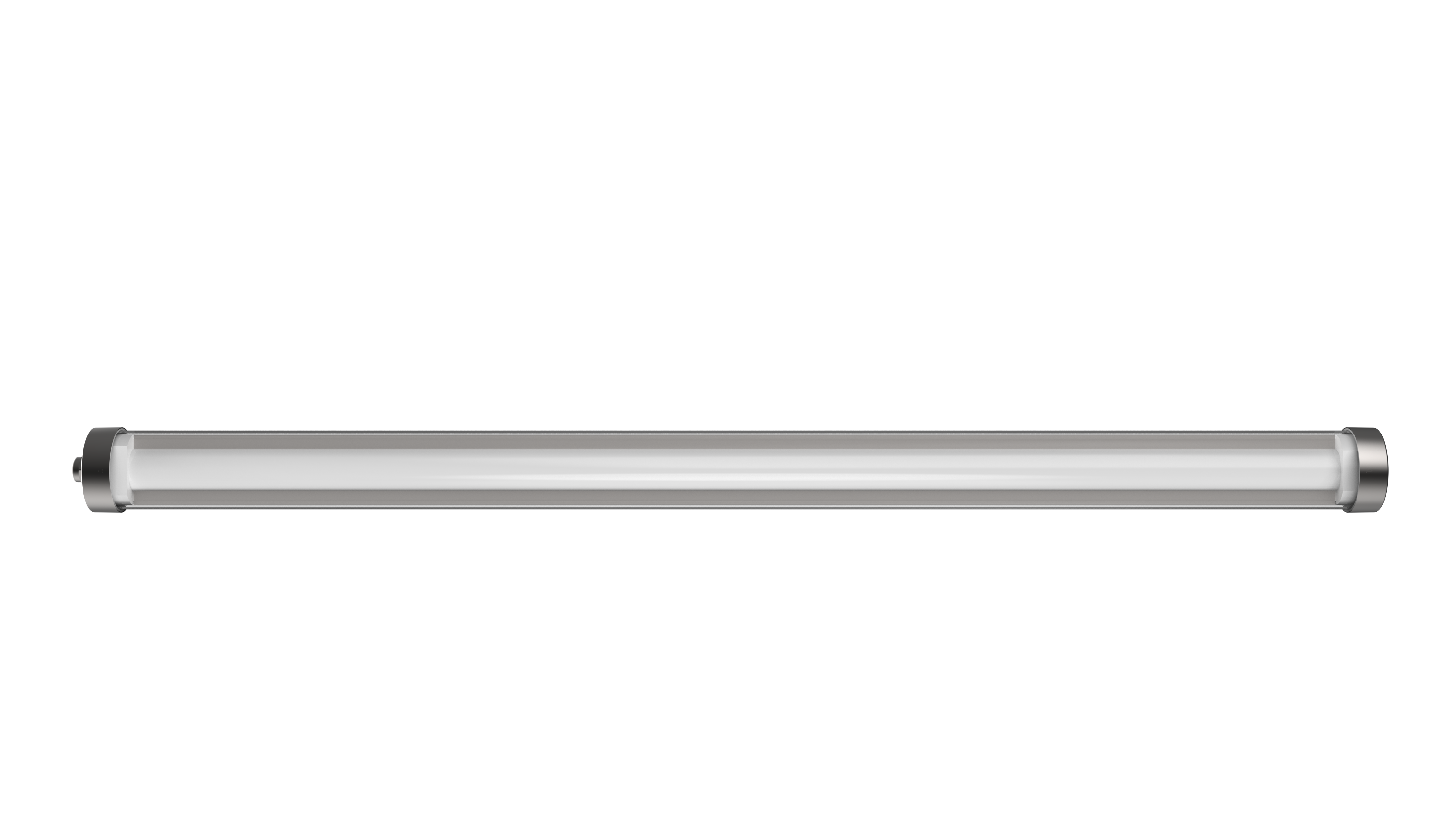

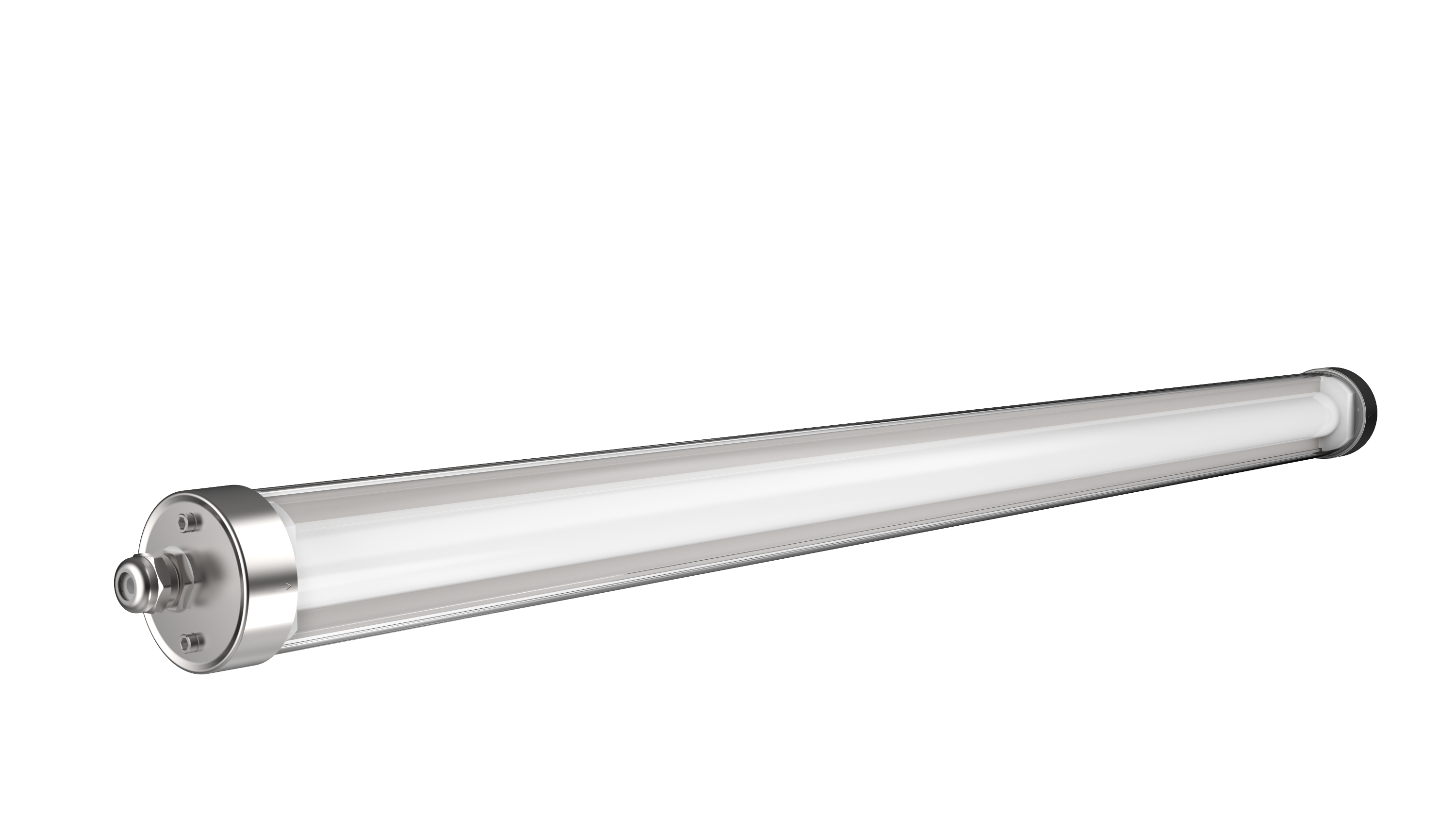

Kylindros Diffuser
Kylindros Diffuser boasts a rugged construction with 304 stainless steel
end-caps and an IK10, IP65 protection
rating that nevertheless offers an even, soft light by virtue of an inner diffuser beneath its polycarbonate outer diffuser. Demanding areas need no longer be required to utilise uncompromising looking fittings with this balance of strength and style.
APPLICATIONS
Office
Residential
Hospitality
Public buildings
Receptions
SPECIFICATIONS
Power Factor:
Electrical Input:
AC 220-240V / 50-60 Hz
FEATURES
Warranty:
5 years
Construction:
Aluminium (extruded), Polycarbonate (PC), Stainless Steel (316 SS)
Metal Finish:
Stainless Steel
Standard Mounting:
Cieling Mounted
Standard Mounting:
Suspended, Wall-mounted
Life Prediction (hrs):
L80 > 112,000 hrs
Ingress Protection:
IP65
Impact Protection:
IK10
| PRODUCT CODE | DIMENSION (mm) | POWER | Luminous Flux | Optic/Beam | Colour Temperature | Colour Rending Index |
|---|---|---|---|---|---|---|
| EKY12S36W8040OD | 1130 x 70 mm | 36 W | 5760 lm | Opal internal diffuser 125ᵒ | 4000K | ≥ 80 |
| EKY14S48W8040OD | 1,395 x Ø70 mm | 48 W | 7,680 lm | 240 deg | 4000K | ≥ 80 |
| EKY14S48W8040OD | 1395 x 70 mm | 48 W | 7680 lm | Opal internal diffuser 125ᵒ | 4000K | ≥ 80 |
