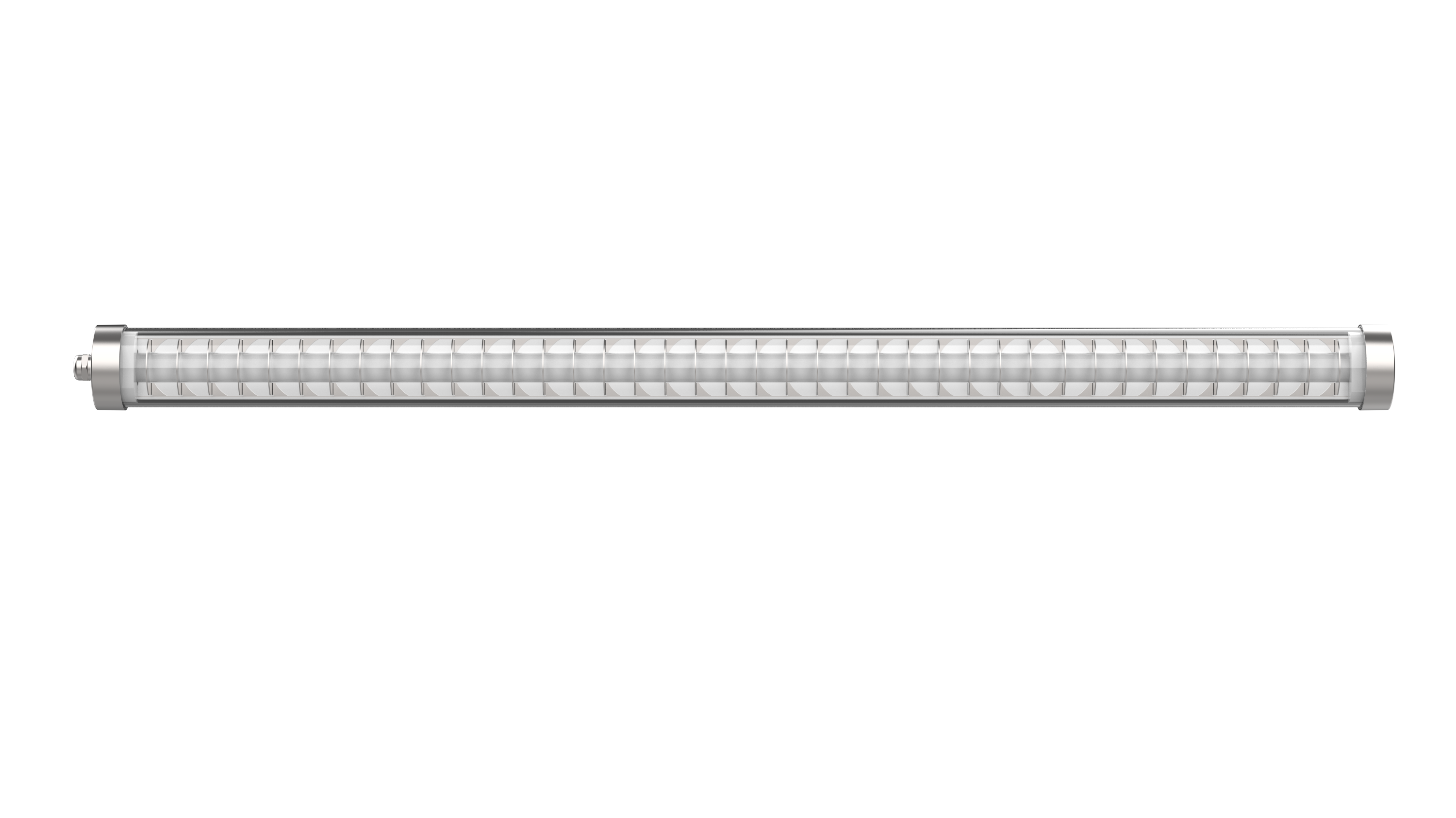

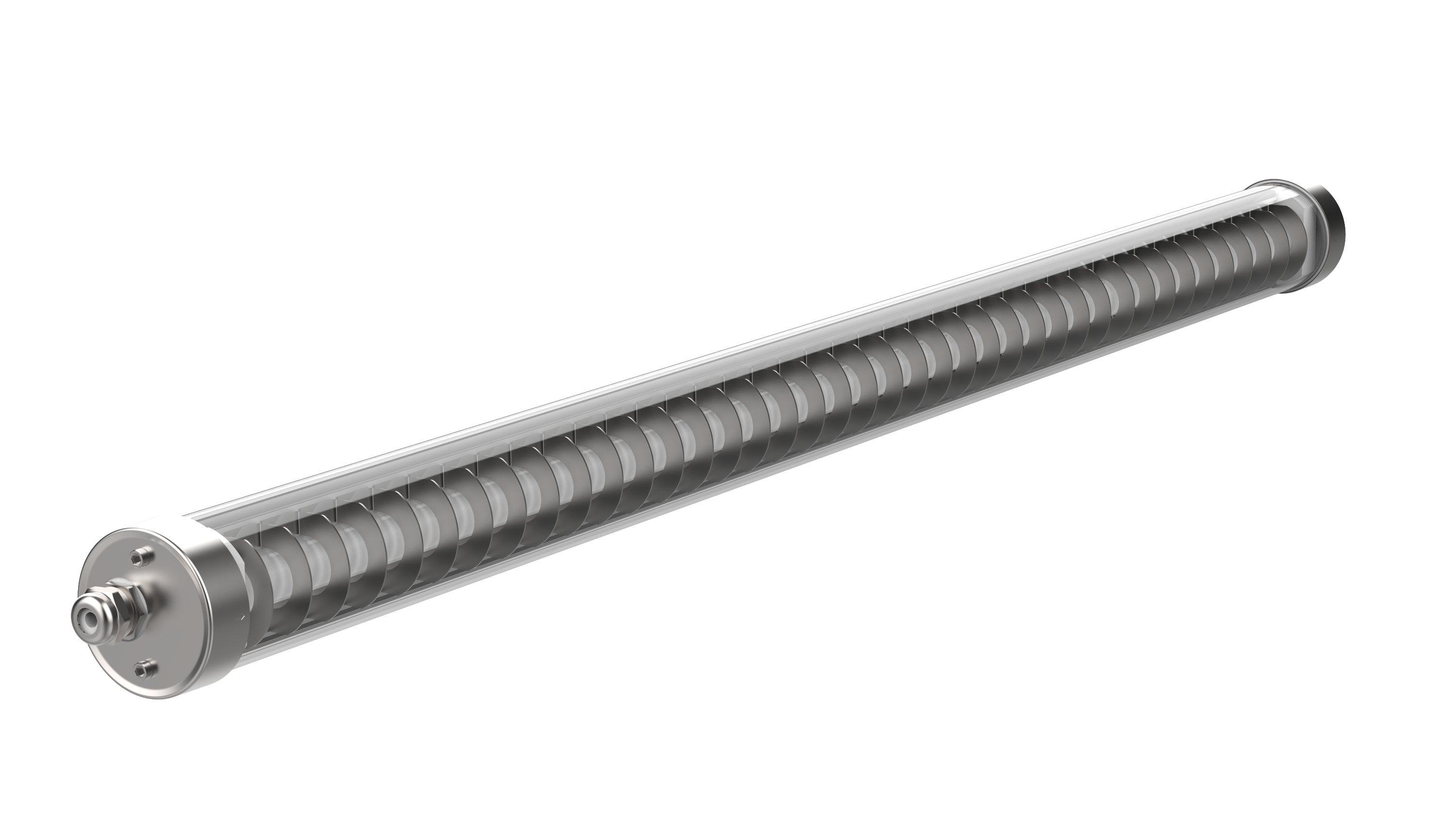

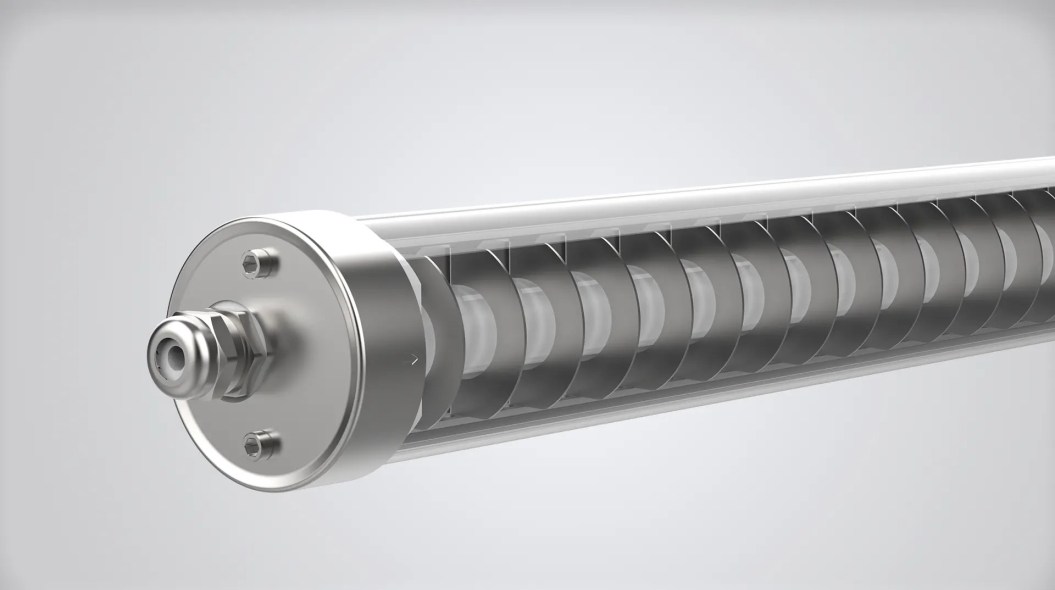

Kylindros Louvre
The classic louvre fitting for controlled light distribution has been reimagined with a choice of colour styles plus an inclined option in the Kylindros Louvre.
Coupled with impressive protection ratings, this fitting can be utilised for illuminating a wide range of spatial functions. A modular design allows for ongoing upgrades by virtue of easily replaceable componentry.
APPLICATIONS
Office
Residential
Hospitality
Public buildings
Receptions
SPECIFICATIONS
Power Factor:
Electrical Input:
AC 220-240V / 50-60 Hz
FEATURES
Warranty:
5 years
Construction:
Aluminium (extruded), Polycarbonate (PC), Stainless Steel (316 SS)
Metal Finish:
Reflective Paint
Standard Mounting:
Cieling Mounted
Standard Mounting:
Suspended, Wall-mounted
Life Prediction (hrs):
L80 > 114,000 hrs
Ingress Protection:
IP65
Impact Protection:
IK10
| PRODUCT CODE | DIMENSION (mm) | POWER | Luminous Flux | Optic/Beam | Colour Temperature | Colour Rending Index |
|---|---|---|---|---|---|---|
| EKY12S36W8040LS | 1130 x 70 mm | 36 W | 5220 - 6960 lm | 95ᵒ x 135ᵒ | 4000K | ≥ 80 |
| EKY14S48W8040LI | 1395 x 70 mm | 48 W | 5040 - 6720 lm | 95ᵒ x 135ᵒ | 4000K | ≥ 80 |
| EKY14S48W8040LS | 1395 x 70 mm | 48 W | 4140 - 5520 lm | 95ᵒ x 135ᵒ | 4000K | ≥ 80 |
